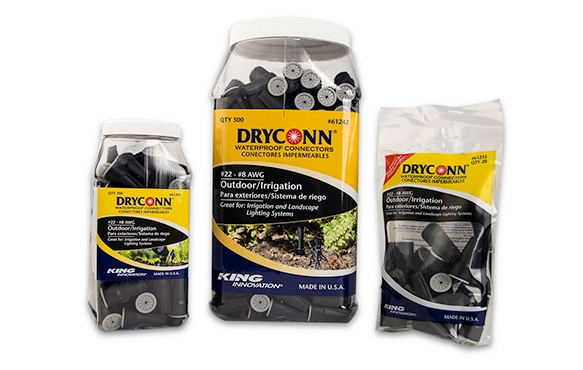

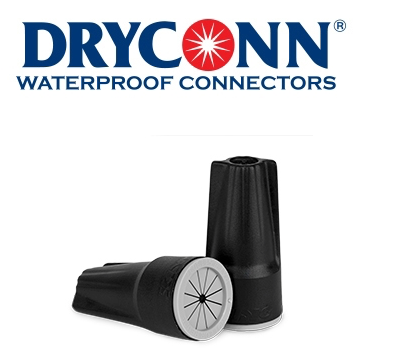

DryConn Outdoor/Irrigation Black/Gray Connectors

QTY 100

FEATURES & BENEFITS:

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Impact resistant
• #1 in the industry
• Waterproof and corrosion proof
• One-step® installation saves time and money
• No pre-twisting required
• Pre-filled with dielectric silicone sealant that never hardens

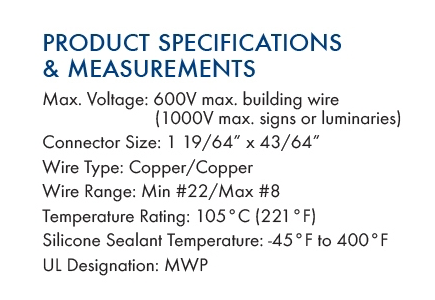

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)
Connector Size: 1 19/64” x 43/64”
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: 105°C (221°F)
Silicone Sealant: -45°F to 400°F
UL Designation: MWP

DryConn Outdoor/Irrigation Black/Gray Connectors Specification Sheet
