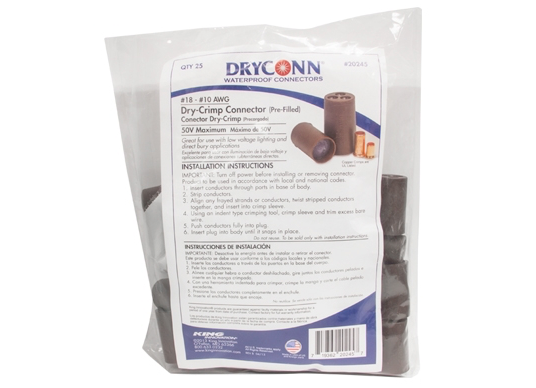

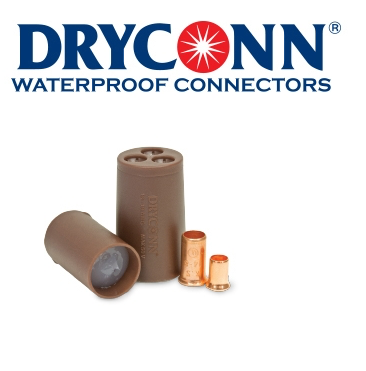

DryConn Dry-Crimp Filled Connectors

QTY 25

FEATURES & BENEFITS:

• Crimp style wire connector
• Copper crimp with protective housing
• Protective housing contains dielectric silicone sealant to protect and waterproof splice
• Holes in connector housing seal around wire to protect silicone from escaping and continuously encapsulate splice
• Two crimp sizes available to cover a wire range from #18 - #10 AWG
• Item sold with both filled and unfilled housing
• Silicone sealant also available sold separately
• Manufacturer approved for direct bury
• Quick, secure connections
• Allows installer to test connection prior to waterproofing splice
• For use in irrigation systems and low voltage lighting applications

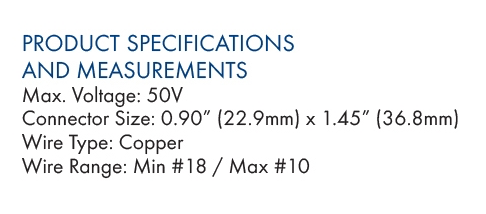

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 50V
Connector Size: 0.90" (22.9mm) x 1.45" (36.8mm)
Wire Type: Copper
Wire Range: Min #18/Max #10
Silicone Sealant Temperature: -45°F (-43°C) to 400°F (200°C)

DryConn Dry-Crimp Filled Connectors Specification Sheet
